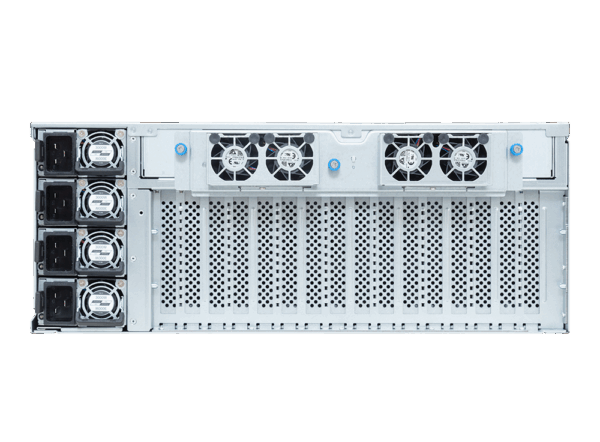

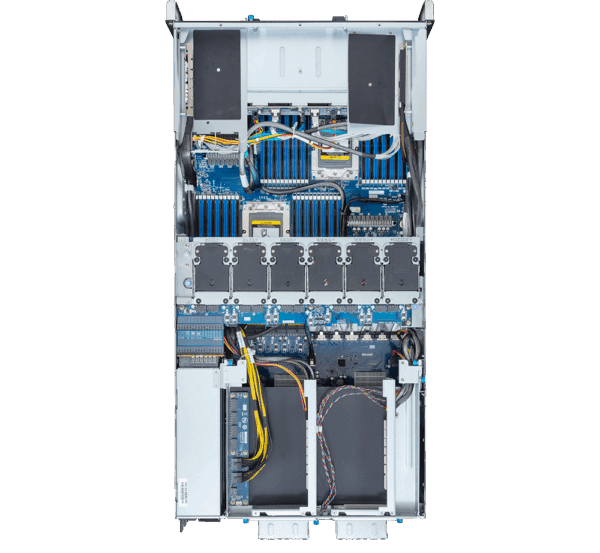

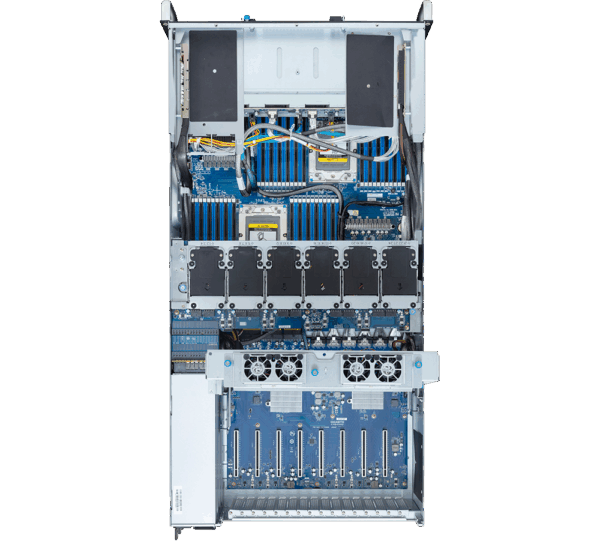

GIGABYTE G493-ZB1-AAP1 GPU伺服器 (AMD) GPU x 10
Dual AMD EPYC 9005/9004 CPU
4U高度，支援10張雙寬度GPU，PCIE 5.0 x16
HPC/AI Server – AMD EPYC™ 9005/9004 – 4U DP 10 x PCIe Gen5 GPUs (with PCIe switches)
- NVIDIA-Certified Systems™ – Data Center Servers
- Supports up to 10 x Dual slot Gen5 GPUs
- Dual AMD EPYC™ 9005/9004 Series Processors
- 12-Channel DDR5 RDIMM, 48 x DIMMs
- Dual ROM Architecture
- 2 x 1Gb/s LAN ports via Intel® I350-AM2
- 8 x 2.5″ Gen5 NVMe/SATA/SAS-4 hot-swap bays
- 4 x 2.5″ SATA/SAS-4 hot-swap bays
- 2 x M.2 slots with PCIe Gen3 x4 interface
- 10 x FHFL PCIe Gen5 x16 slots for GPUs
- 2 x LP PCIe Gen5 x16 slots on the front side
- 3+1 3000W 80 PLUS Titanium redundant power supplies
Specifications
| Barebone | Gigabyte G493-ZB1-AAP1 |
| CPU | Dual AMD EPYC 9005/9004 Processors (Socket SP5) LGA 6096 |
| Memory | 支援 48 隻 DDR5 ECC REG RDIMM 記憶體 |
| Chipset | System on Chip |
| GPU | 支援10張 雙寬度GPU PCIE 5.0x16 |
| Storage | 8顆2.5吋 Gen5 NVMe U.2/SATA + 4顆2.5吋SATA |
| RAID | 無 (可另外選購硬體陣列卡 or SAS HBA) |
| LAN | 2 x 1Gb/s Intel I350-AM2 + 1 x BMC Management LAN |
| Video | ASPEED AST2600 (內建BMC遠端管理) |
| Expansion Slots | 前方: 2 x LP x16 (Gen5 x16) + 後方: 10 x FHFL x16 (Gen5 x16) |
| Front I/O | 2 x USB 3.2，1 x VGA，2 x RJ45 ports，1 x MLAN port |
| Rear I/O | N/A |
| Power Supply | 4 x 3000W Redundant power supplies |
| Dimensions | 寬 448mm x 高 176mm x 深 880mm |
